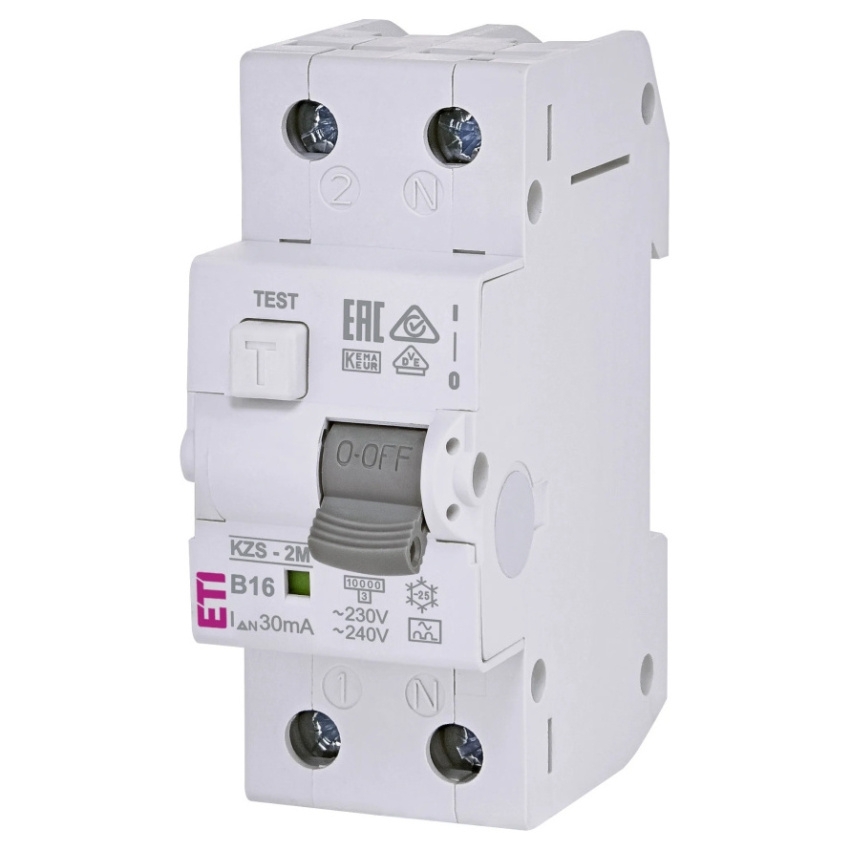

ETI CHRÁNIČ 10 KZS-2M 1P+N A B16/0,03 10KA 002173204

Proud. chránič s nadpr. ochran, kzs-2m a b16/0.03, un (v) 240, počet pólů 1+n, zkratová odolnost (ka) 10, vypínací charakteristika b, jmenovitý podmíněný pracovní proud (ka) 10, vypínací čas okamžitý, vstupní svorky (mm2) 1-25, jmenovitá frekvence (hz) 50/60 hz, normy iec/en 61009, jmenovitý proud (a) 16, typ a, jmenovitý chybový pracovní proud idn (ma) 0.03, number of poles (total) 2 , number of protected poles 1 , rated voltage 230 v, rated insulation voltage ui 500 v, rated impulse withstand voltage uimp  kv, rated current 16 a, rated fault current 0.03 a, leakage current type a , current limiting class 3 , rated short-circuit breaking capacity according to en 61009 10 ka, rated short-circuit breaking capacity according to iec 60947-2  ka, rated short-circuit breaking capacity icn according to en 61009-1  ka, disconnection characteristic  , surge current capacity  ka, voltage type ac , frequency  , release characteristic b , concurrently switching neutral conductor true , with interlocking device  , over voltage category  , pollution degree  , ambient temperature during operating  °c, width in number of modular spacings 2 , built-in depth 69 mm, suitable for flush-mounted installation  , anti-nuisance tripping version  , degree of protection (ip) ip20 , connectable conductor cross section solid-core 1…25 mm?, connectable conductor cross section multi-wired 1…25 mm?
